VCOG 1-6X24 GRN SEG CIR X-HR MOA/THM SCR

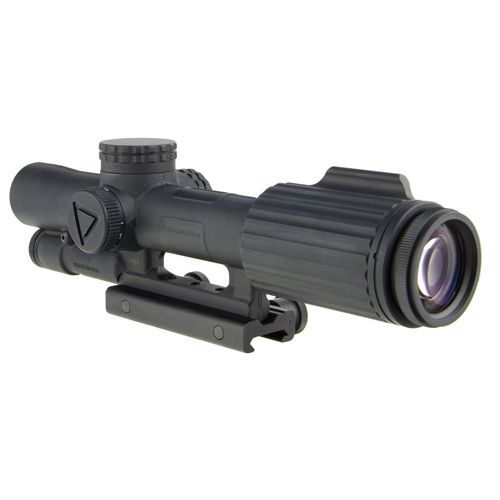

VCOG Riflescope

The Trijicon 1-6×24 VCOG® (Variable Combat Optical Gunsight) is a highly rugged, variable magnification riflescope designed for close quarter battle (CQB) and long distance marksmanship. With a forged aircraft-grade 7075-T6 aluminum housing, the VCOG® is nearly indestructible. Superior glass provides exceptional clarity and color with zero distortion. The universal segmented circle/MOA reticle is designed for multi-platform use, accommodating multiple calibers, ammunition weights, and barrel lengths. The first focal plane reticle allows sub tensions and drops to remain true at any magnification, allowing the shooter to quickly and accurately apply the correct hold. With ruggedized electronics, the LED reticle is robust enough for any application. Powered by a lithium AA battery (provided), it has 6 user-selectable brightness settings. The green LED boasts a battery life of 1,400 hours at setting 4 (constant on); the red LED has a 700 hour battery life. An integrated dial fin allows easy rotation through the magnification range, and a constant eye relief means no head or stock position adjustments are needed. Waterproof to 20 meters (66 ft.).

Description:

• Superior Quality Glass
• Virtually indestructible
• Rapid target acquisition
• Bright, crisp illumination
• Quick, accurate ranging reticles
• Easy to set adjusters
• No rings needed
• Adjustable brightness settings
• Quick magnification adjustments

Specifications:

• Length x Width x Height 10.05 in x 2.51 in x 2.73 in (255.27mm x 63.75mm x 69.34mm)
• Weight 23.2 oz. (657.71g)
• Magnification 1-6x
• Objective Size 24mm
• Reticle Pattern Segmented Circle / Crosshair
• Day Reticle Color Green
• Night Reticle Color Green
• Focal Plane First
• Bullet Drop Compensating (BDC) Yes
• Caliber MOA
• Bindon Aiming Concept™ (BAC) Yes
• Illumination Source LED
• Power Source AA Lithium or Alkaline Battery
• Battery Life Green LED: 1,400 hrs continuous use at brightness setting 4 of 6
• Adjustment 1/4 MOA Per Click
• Adjustment Range Elevation: 90 MOA total travel; Windage: 90 MOA total travel; Per Revolution: 20 MOA
• Eye Relief 4 in. (101.6mm)
• Exit Pupil 0.41 in. – 0.15 in. (10.41mm – 3.81mm)
• Field of View (degrees) 18° – 3°
• Field of View (feet) 95 ft. – 15.9 ft. @ 100 yds. (31.67 – 5.3m @ 100m)
• Mount Flattop Thumbscrew Mount (TA51)
• Housing Material Forged Aluminum
• Finish Matte Black
• Submersion Depth 66 ft. (20m)
